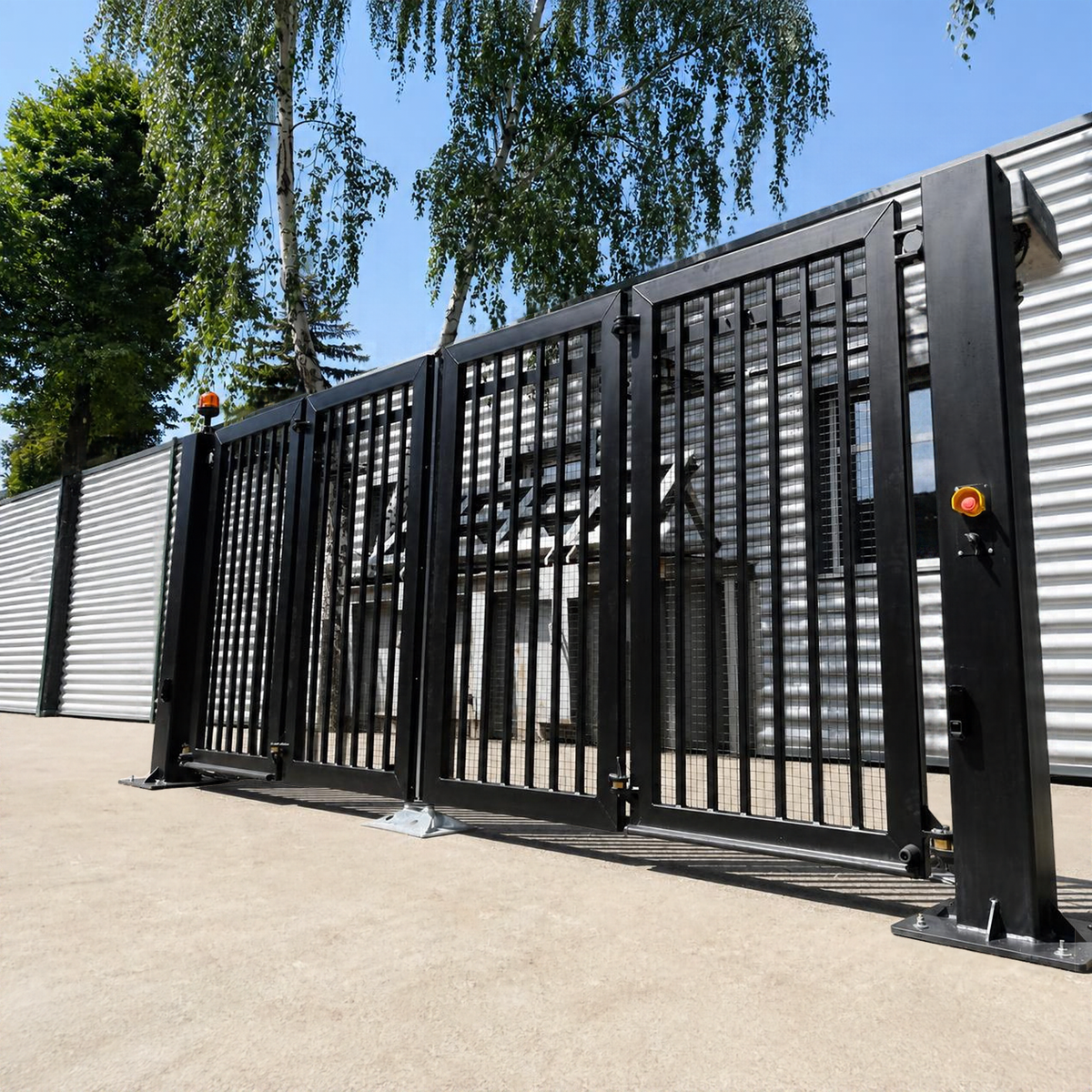

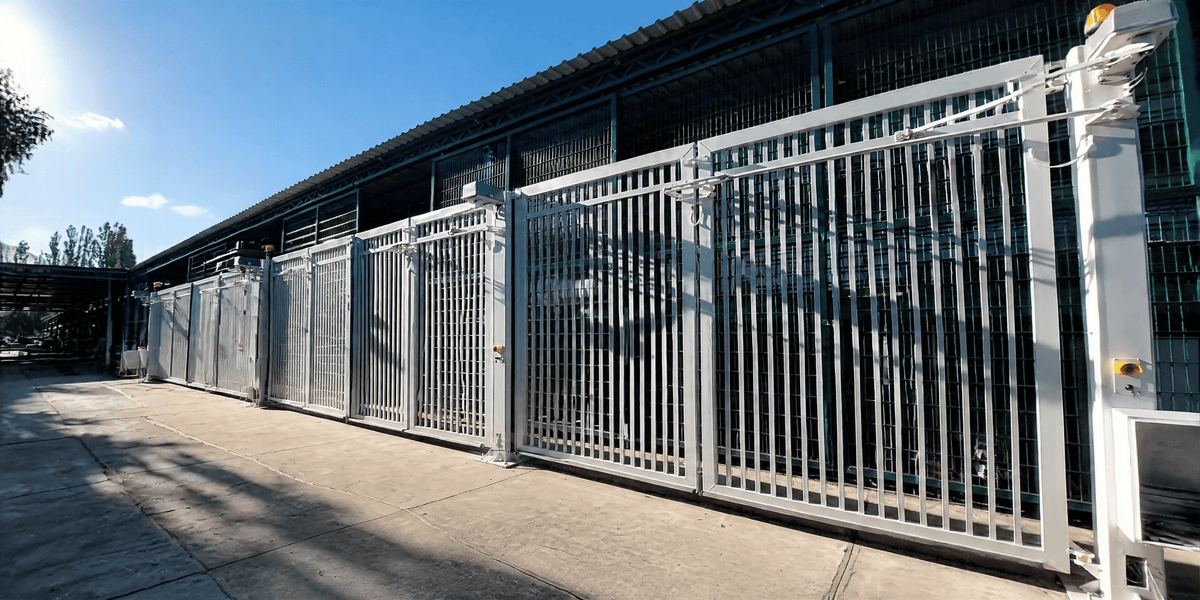

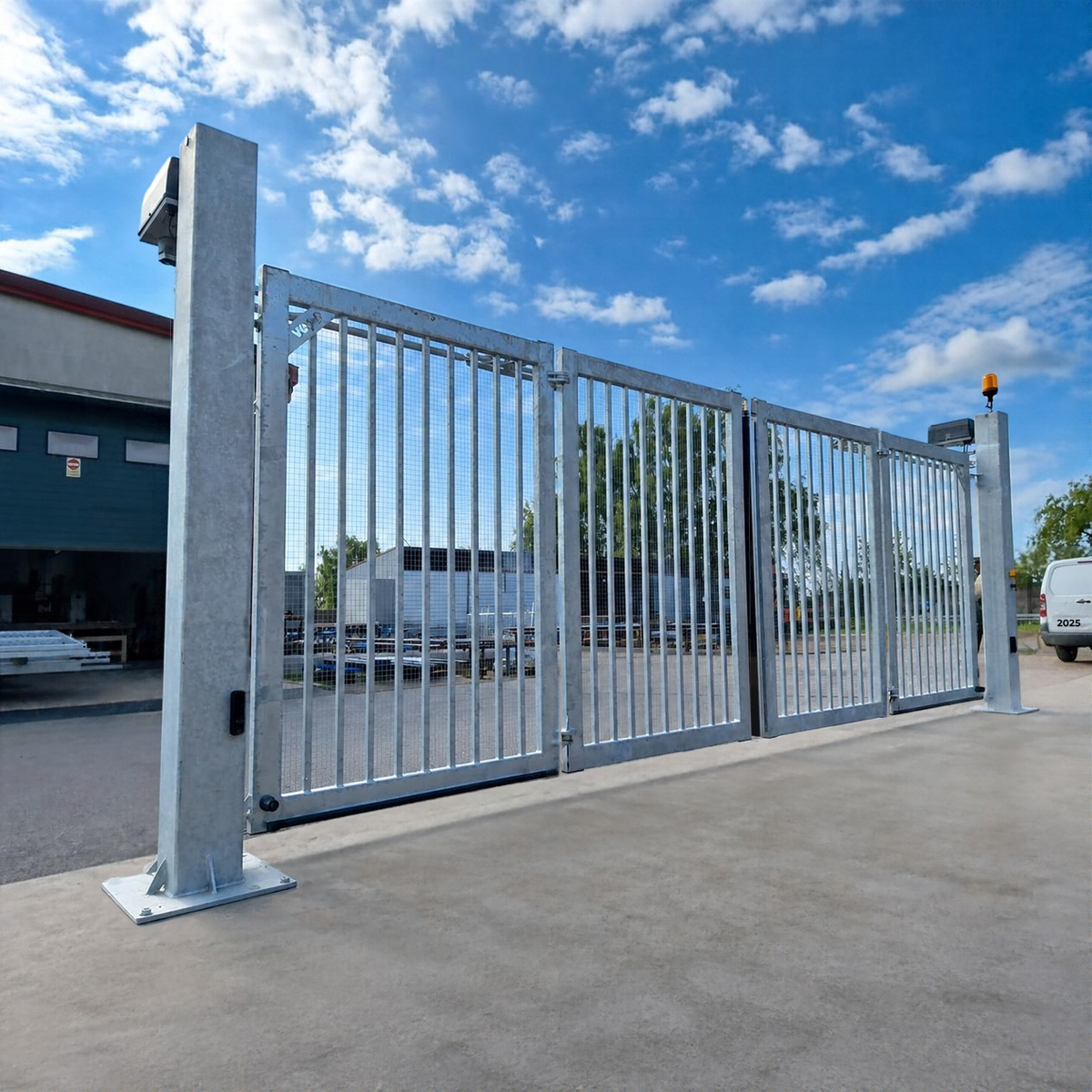

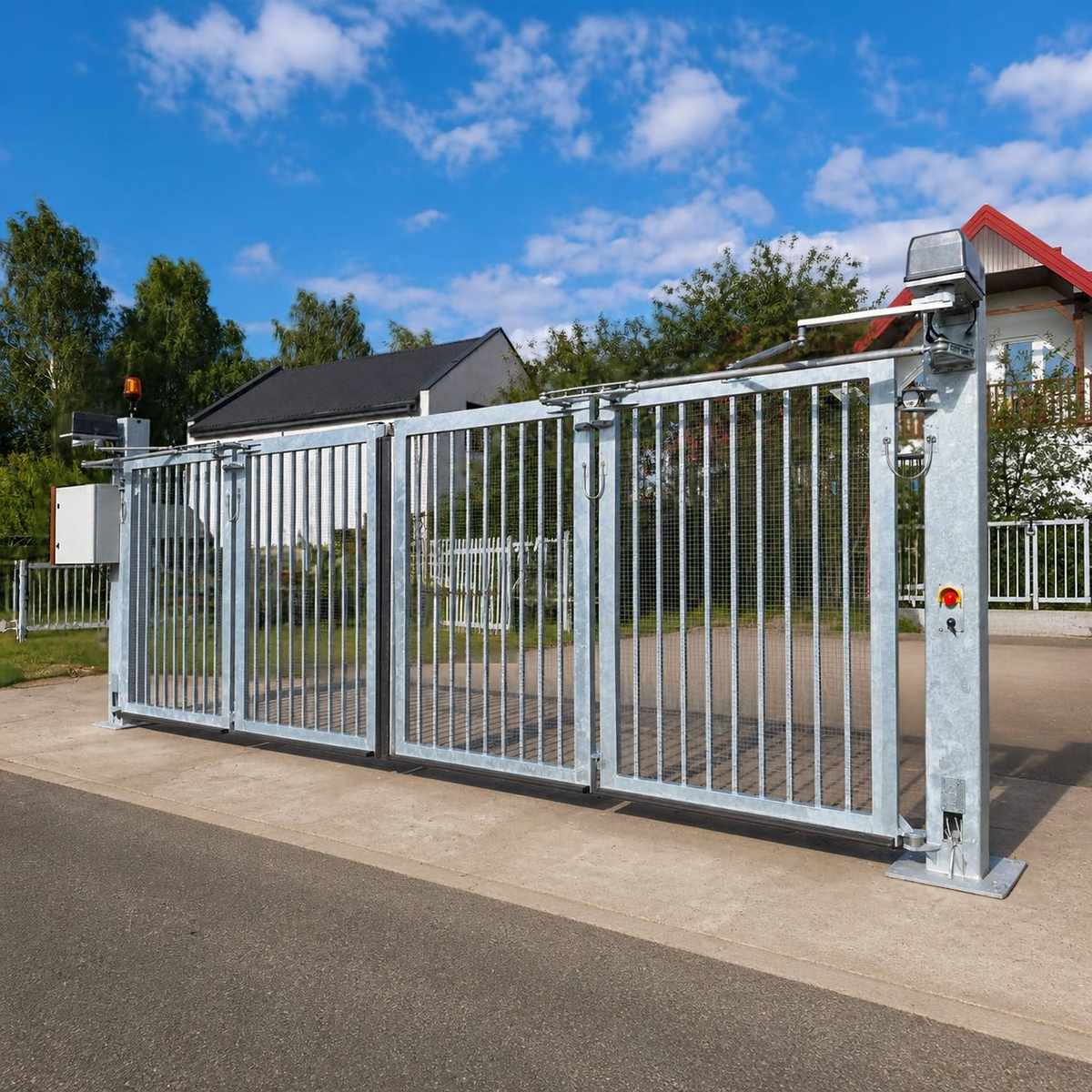

RAPTOR FOLDING GATE

RAPTOR SERIES – HIGH-SPEED GATES

Best-in-Class Performance. Uncompromising Quality. Maximum Reliability.

The RAPTOR Series High-Speed Gates represent the pinnacle of our gate engineering and stand out as our flagship product. Designed to deliver exceptional performance in the most demanding industrial and commercial environments, RAPTOR gates ensure outstanding reliability, regardless of weather conditions or temperature fluctuations.

At the heart of every RAPTOR gate is an advanced drive system powered by three-phase motors and frequency inverters. This technology ensures exceptionally smooth, continuous and high-speed operation, with speeds of up to 1 m/s, delivering efficient traffic flow, enhanced operational performance and long-term reliability.

PREMIUM DESIGN. BUILT TO LAST.

RAPTOR gates combine robust construction with refined aesthetics. Manufactured using high-quality steel components and protected by professional powder coating and hot-dip galvanizing, they offer excellent durability, corrosion resistance and an impressive finish.

The standard gate infill consists of vertical closed profiles measuring 25 × 25 mm, with 100 mm spacing. Alternative infill configurations, including the D868 design, are also available upon request, allowing the gate to be tailored to your specific requirements.

Whether securing an industrial facility, commercial property or professional premises, RAPTOR gates deliver the perfect combination of strength, functionality and visual appeal.

ADVANCED SAFETY. COMPLETE CONTROL.

Safety is an integral part of the RAPTOR design. Industrial gates intended for commercial and professional applications are equipped with essential safety and control features, including electronic safety edges, key-operated switches and emergency stop buttons.

The complete automation system ensures precise, reliable operation, while integrated safety devices help protect users and vehicles during everyday use.

For enhanced visibility and traffic management, the RAPTOR gate can also be supplied with an LED traffic signal.

One of our most popular configurations is the 4000 × 2000 mm RAPTOR gate equipped with an LED traffic light — an ideal solution for facilities requiring efficient access control and reliable vehicle traffic management.

STANDARD TECHNICAL SPECIFICATIONS

• Maximum width: up to 10,000 mm
• Maximum height: up to 2,500 mm
• Operating speed: up to 1 m/s
• Drive system: fully automated, with frequency inverters
• Standard infill: 25 × 25 mm vertical closed profiles with 100 mm spacing
• Alternative infill: D868 or a customised solution upon request
• Key-operated switches: 2 pcs. (inside and outside)
• Emergency stop buttons: 2 pcs. (inside and outside)
• Electronic safety edges: 8 pcs.
• Photocell line: 1 set
• Warning light: 1 pc.
• Remote controls: 3 pcs.
• Power supply: 230 V / 50 Hz

STANDARD EQUIPMENT INCLUDED

Each RAPTOR gate is supplied as a complete package, including:

• Gate leaf and supporting posts
• Gear levers for bifolding operation
• Complete automation system – DAAB model
• Set of 8 electronic safety edges
• Screws, bolts and mounting hardware

RAPTOR SERIES – ENGINEERED FOR EXCELLENCE.

When performance, safety and durability are non-negotiable, RAPTOR High-Speed Gates deliver.

Choose RAPTOR for outstanding speed, advanced automation, robust construction and premium quality — built to perform when it matters most.
